Synchronization of Advance Design model with Revit via Graitec BIM Connect

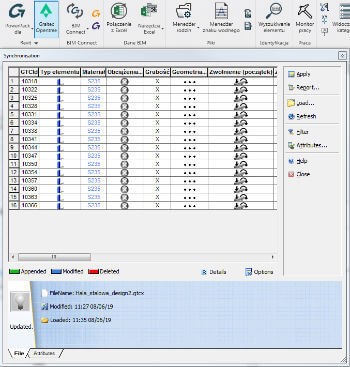

The calculated structure can be synchronised with the Revit input model; to do this you export the model from Graitrec’s structural analysis software, Advance Design, using BIM Connect. Then select the synchronisation option in Revit and indicate the location of the exported file. The software generates a list of all elements, creating a breakdown of added, changed and deleted elements.

After reviewing the changes that have occurred in relation to the calculation, you can accept, ignore or remove the changes from the sync list. Once the changes are accepted, the model in Autodesk Revit will update.

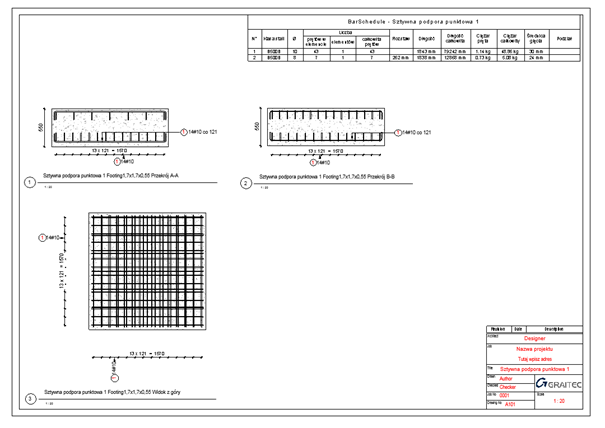

In Revit, using the PowerPack Design module, it is also possible to design foundations together with the calculation of the reinforcement, based on given conditions. After the calculations, reinforcement drawings can be generated automatically. Most of the drawing’s components such as sections, their location, used labels, dimension lines or lists/bar schedules can be saved by the user in a template which is a native Revit file. From this, PowerPack will generate the drawings.

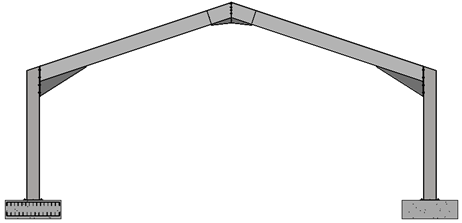

It remains to define the steel connections. This can be done directly in Revit or using Dynamo, but for the sake of shop drawings, it is suggested to export the model to Advance Steel. The connection calculations themselves can be carried out in Advance Design structural analysis software, using the Steel Connection Designer module.

Learn more about Advance Design!
